BWSENSING AgileLight-120A Digital Closed-loop Fiber Optic Gyro
Introduction
AgileLight-120A is an interferometric digital closed-loop
single-axis fiber optic gyroscope.
The AgileLight-120A fiber optic gyroscope adopts unique
Intelli-Process technology, which
not only eliminates the influence of temperature changes on the
performance of the gyroscope
to the greatest extent, but also significantly improves the bias
stability, angle random, linearity of
the scale factor, stability and other fiber optic gyroscopes.
Performance index
| Technical parameter | Axial | Single axis |
| Maximum angular velocity (º/s) | ±300 |
| Bias stability at room temperature 1σ(º/h) | ≤0.002 |
| Bias stability at full temperature (º/h) | ≤0.01 |
| Bias repeatability at room temperature (º/h) | ≤0.002 |
| Repeatability of variable temperature bias (º/h) | ≤0.01 |
| ARW(Noise)(º/ √hr) | 0.0005 |
| Non-linear scaling factor at room temperature (ppm) | ≤10 |
| Repeatability of scale factor(ppm) | ≤10 |
| Mechanical feature | Bandwidth (Hz) | ＞400 |
| Update frequency (Hz) | 1000 or 400 |
| Power consumption (W) | 4 |
| Working voltage (V) | 5 |

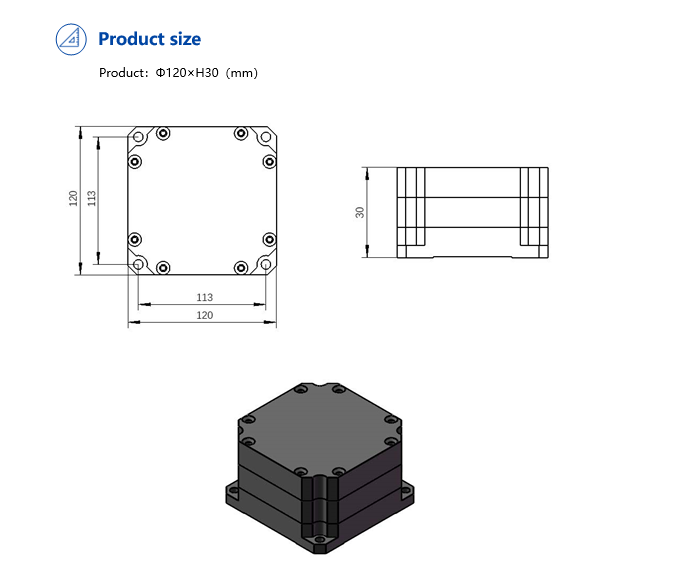

| Dimension (mm) | 120x120x30 |
| Weight (g) | ＜650 |
| Output mode | RS 422 |
| Working temperature (℃) | -40~+65 |
Application
● Damping of high-speed train swing
● Locking of the aiming system
● Oil drilling
● Antenna/radar/optical platform stability
● Guidance and navigation
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
