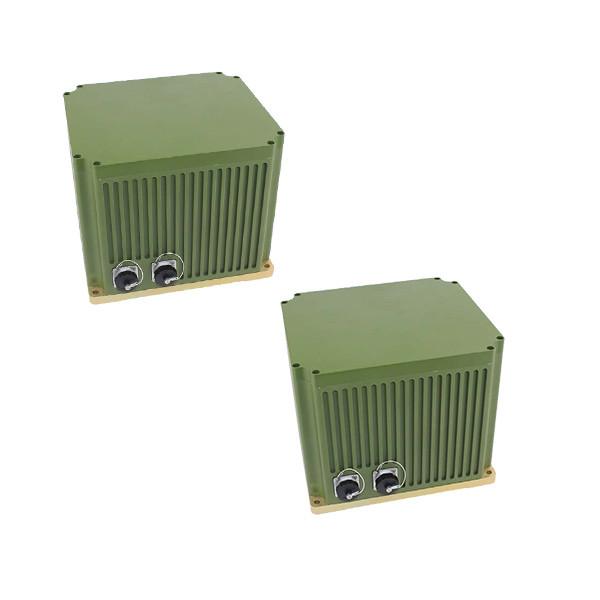

AgileLight-NS200 Low-Cost Fiber Optic Gyro North Finder High
Accuracy 0.06°
Introduction:
Agilelight-ns200 is a low-cost fiber optic gyro north finder. It
has the characteristics of large working bandwidth, high
resolution, small zero drift, high linearity, short start-up time,
impact resistance, vibration resistance and low cost. It is an
alternative to the traditional mechanical gyroscope,suitable for
motion sensing, platform stability, navigation and precise aiming.
Performance Index:
Measurement Range | Azimuth | 0°～360° |
| Attitude angle | -7°～+7° |
Performance | Azimuth accuracy | 1°(1δ) |
| Attitude angle accuracy | 0.06° |
| Start-up Time | 10s |
| North seek time | 3min/5min |
Physical characteristics | Power supply | +9Vdc～+36Vdc |
| Maximum power | 30W |
| Output form | RS422( Baud rate 9600～115200 |
| Operating temperature | -40°～ +60° |
| Storage temperature | -45°～ +70° |
| Weight | 6.1kg |
| Connector | Y11P-1210ZK10 |
Application:
● Stability of the antenna system
● Tunnel construction orientation
● Initial alignment of surveying and mapping equipment
● Attitude/Azimuth Reference System
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Fiber optic gyroscope test method
The military standard for the current fiber optic gyroscope test
method is: GJB2426A-2004
