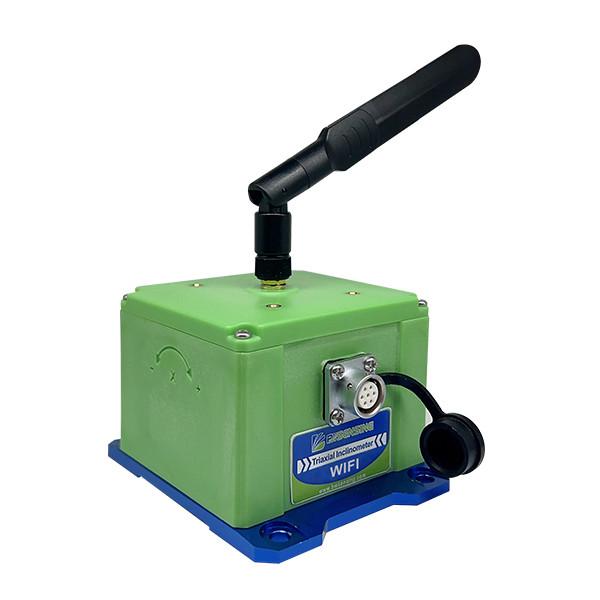

WF-WH500 High-Speed Wireless Transmission Inclinometer
Accuracy:0.003° Resolution0.0007° Structural Health Monitoring
Introduction:
WF-WH500 high-speed wireless transmission inclination sensor is a
miniaturized intelligent digital inclination sensor specially
designed for structural health monitoring. It adopts rechargeable
lithium battery, which can work continuously for 24 hours
(continuous measurement and data transmission) at one charge, and
can be quickly charged by external special charger. It can meet the
needs of high-precision and high-frequency monitoring.
Performance Index:
| Measurement range | Condition | ±30 | ° |
| Measurement axis | Mutually perpendicular | X-Y | |
| Accuracy | Room temperature | 0.003 | ° |
| Resolution | | 0.0007 | ° |
| Zero temperature drift | -40～85℃ | ±0.0007 | °/℃ |
| Cross axis error | 25℃ | 0.003 | ° |
| Output frequency | | Up to 50 | Hz |
Mean No Failure Working hours MTBF | ≥90000 h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 times/axis |
| Dimension | L109*W65*H53 mm |
| Weight | About 640(±10)g |
Application:
● Tower tilt monitoring
● Bridge tower inclination measurement
● Dam monitoring
● Slope disaster prevention
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
