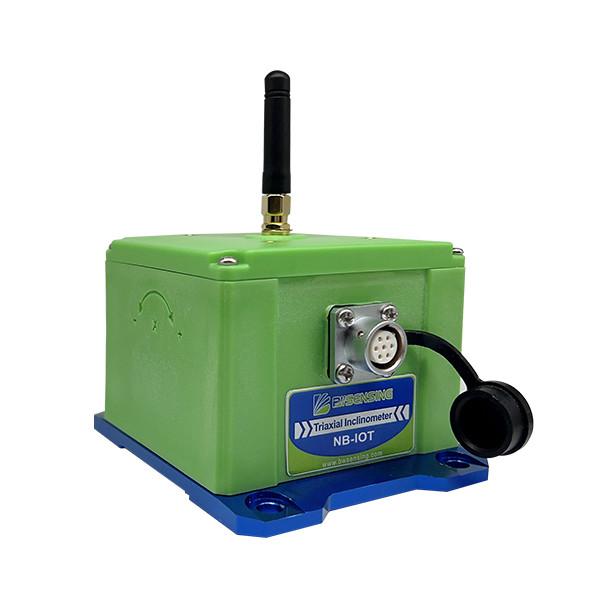

NB-WK100 Low-cost Wireless Inclinometer
Introduction:
It is suitable for remote real-time monitoring and analysis of
physical characteristics such as uneven settlement and inclined
deformation of the foundation of dangerous old houses, ancient
buildings, towers and other structures. NB lot and GSM network
modes are supported. The Internet of things (nbot band) can be used
to assess the risk of large data upload to the Internet of things
(nbot band) through the Internet of things (nbot band) structure to
avoid the risk of large data.
Performance Index:
| Measurement range(°) | Condition | ±90 |
| Measurement axis | Mutually perpendicular | X-Y |
| Accuracy(°) | Room temperature | 0.5 |
| Resolution(°) | | 0.02 |
| Zero temperature drift (°/℃) | -40～85℃ | ±0.05 |
| Cross axis error (°) | 25℃ | 0.5 |
| Automatic sleep mode | Support |
| Timed wake up | Support |
| Exercise wake | Support |
| Mean time between failures MTBF | ≥90000 h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 times/axis |
| Dimension | L109*W65*H53 mm |
| Weight | About 500(±10)g |
Application:
● Ancient building protection monitoring
● Foundation pit inclinometer
● Tower tilt monitoring
● Dangerous housing monitoring
● Bridge tower inclination measurement
● Slope disaster prevention
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
