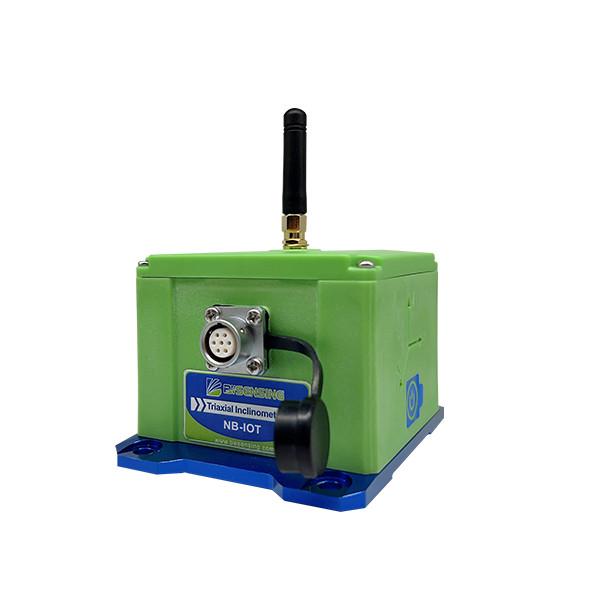

NB-WH500 High-precision NB-IOT Wireless Inclinometer Accuracy
0.003°
Introduction:
For the demand of remote real-time monitoring and analysis of
physical characteristics such as uneven settlement and tilt
deformation of the foundation of dangerous and old houses, ancient
buildings, various towers and other structures, North micro sensor
has launched nb-wh500 high-precision wireless inclination sensor,
which supports NB lot and GSM network modes. Structure data can be
uploaded to the cloud through narrow band Internet of things (NB
IOT) or operator 2G network. Users can evaluate the risk level of
individual and regional structures through big data analysis,
improve management efficiency and emergency level and avoid losses.
Performance Index:
| Measurement range(°) | Condition | ±30 |
| Measurement axis | Mutually perpendicular | X-Y |
| Accuracy(°) | Room temperature | 0.003 |
| Resolution(°) | | 0.0007 |
| Zero temperature drift (°/℃) | -40～85℃ | ±0.0007 |
| Cross axis error (°) | 25℃ | 0.005 |
| Automatic sleep mode | Support |
| Timed wake up | Support |
| Exercise wake | Support |
| Mean time between failures MTBF | ≥90000 h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3times/axis |
| Dimension | L109*W65*H53 mm |
| Weight | About 500(±10)g |
Application:
● Bridge tower inclination measurement
● Dam monitoring
● Slope disaster prevention
● Ancient building protection monitoring
● Tunnel monitoring
● Foundation pit inclinometer
● Dangerous housing monitoring
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
