BW-AH425C High precision CAN Attitude Heading Reference System
Pitch±90º,Roll±180º Pitch/Roll accuracy 0.2°
Introduction
BW-AH425C provides reliable heading and roll angle for motion
carriers through multi-sensor fusion algorithms, pitch angle,
angular velocity, acceleration and other information. The attitude
data deviation is estimated by 6-state Kalman filter with
appropriate gain, which is suitable for navigation, positioning and
dynamic attitude measurement of unmanned vehicles.
Performance index
Attitude parameter
| Pitch/Roll accuracy | 0.2° |
| Heading accuracy | 0.3° |
| Inclination range | Pitch±90º,Roll±180º |
| Gyro | Resolution | 0.01° |
| Range | ±400°/sec |
| Zero Bias Stability at full temperature | 10 °/h(10s,1σ) |
| ARW | ＜0.1 °/√h |
| Scale factor nonlinearity | ≤100ppm(1σ) |
| Scale factor repeatability | ≤100ppm(1σ) |
| Bandwidth | 100Hz |
| Accelerometer | Range:X,Y,Z | ±3.6 g |
| Bias stability | 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Interface feature | Communication mode | CAN |
| Maximum output frequency | 100Hz |
| MTBF | ≥90000 h/time |
| EMC | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 time/axis |
| Weight(with cable) | 280g |
Application
Marine Surveyor
Underwater Robot Navigation
Robot control
Unmanned vehicle

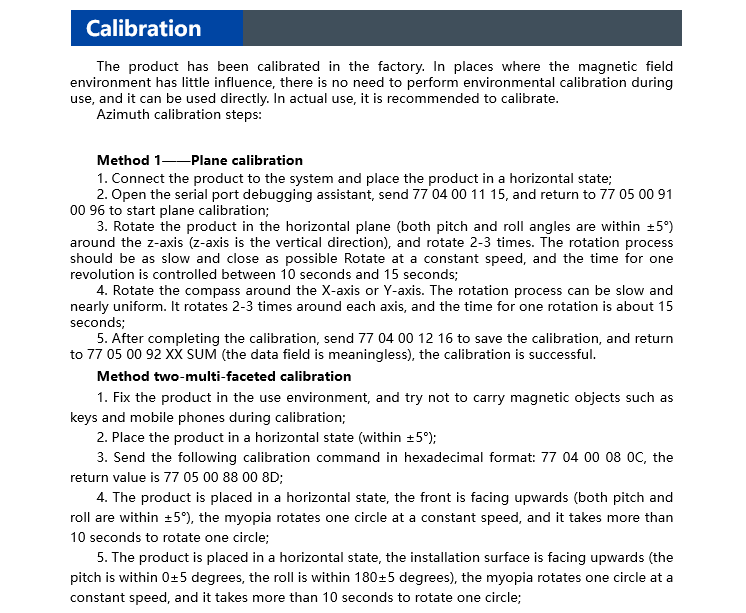

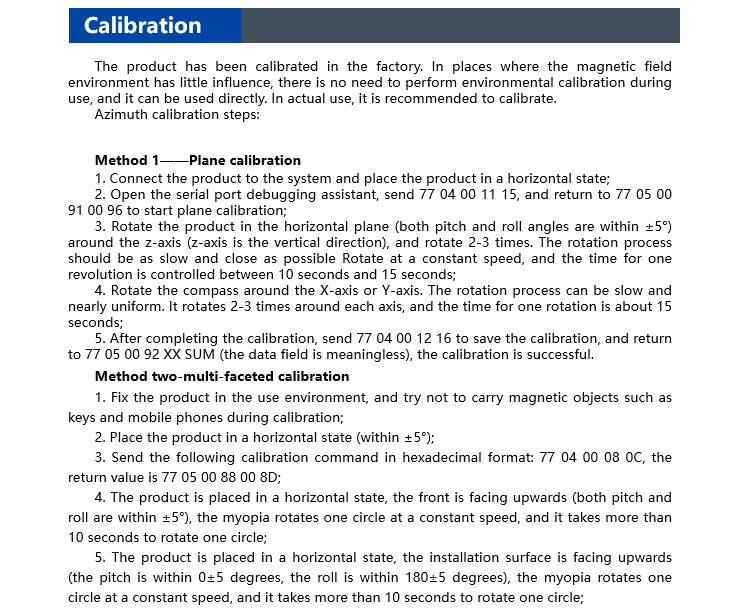

FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
