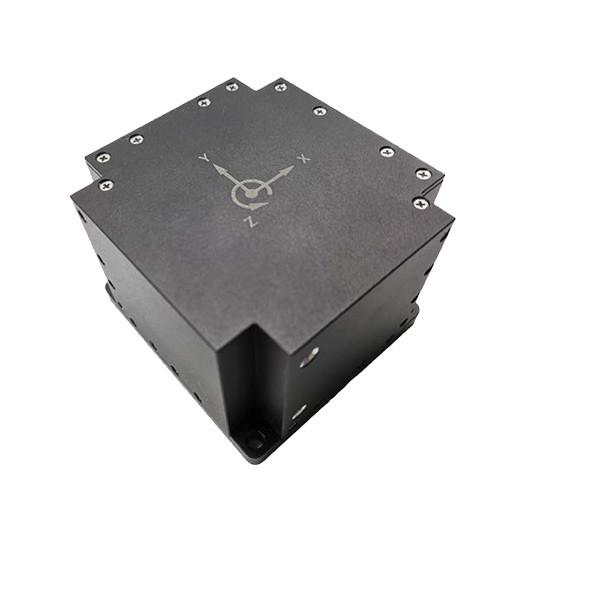

AgileLight-50A Digital closed-loop high resolution fiber optic Gyro
Introduction
The AgileLight-50A fiber optic gyroscope adopts unique
Intelli-Process technology, which not only eliminates the influence
of temperature changes on the performance of the gyroscope to the
greatest extent, but also significantly improves the bias
stability, angle random, linearity of the scale factor, stability
and other fiber optic gyroscopes. Key indicators. The extremely
low bias stability, angular random walk and strong anti-vibration
capability make it perfect for various industrial occasions.
Performance index
| Technical parameter | Axial | Single axis |
| Maximum angular velocity (º/s) | ±600 |
| Stability at room temperature 1σ(º/h) | ≤0.05 |
| Bias stability at full temperature (º/h) | ≤0.2 |
| Bias repeatability at room temperature (º/h) | ≤0.05 |
| Repeatability of variable temperature bias (º/h) | ≤0.2 |
| ARW(Noise)(º/ √hr) | 0.02 |
| Non-linear scaling factor at room temperature (ppm) | ≤100 |
| Repeatability of scale factor(ppm) | ≤100 |
| Mechanical feature | Bandwidth (Hz) | ＞400 |
| Update frequency (Hz) | 100 |
| Power consumption(W) | 4 |
| Working voltage(V) | 5 |
| Dimension(mm) | 50x50x30 |
| Weight(g) | ＜150 |
| Output mode | RS 422 |
| Working temperature(℃) | -40~+65 |
● Automatic cargo truck
● Robot balance
● Guidance and navigation
● Locking of the aiming system
● Oil drilling
● Small inertial group, inertial navigation system
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
