BW-IMU525C Series High-Performance CAN Inertial Measurement Unit
Bias stability 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ)
Introduction
BW-IMU525C uses highly reliable MEMS accelerometers and gyroscopes,
and it uses algorithms to ensure measurement accuracy.
The data deviation of the BW-IMU525C is estimated by the 6-state
Kalman filter with appropriate gain, which is suitable for inertial
attitude measurement in motion or vibration state.
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec |
| Bias stability at room temperature | ＜0.5°/h(100s,1σ) ＜5°/h(10s,1σ) |
| Bias stability at full temperature | ＜20°/h (10s, 1σ) |
| Angle random walk coefficient | ＜0.1 °/√h |
| Bias repeatability | ＜50 °/h(1σ) |
| Scale factor non-linearity | ≤100ppm(1σ) |
| Scale factor repeatability | ≤100ppm(1σ) |
| Bandwidth | 100Hz |
| Accelerometer | Range: X, Y, Z | ±3.6g |
| Resolution | 0.01mg |
| Bias stability | 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Application
Unmanned drive
Robots
Stable platform
AGV unmanned guided vehicle
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.

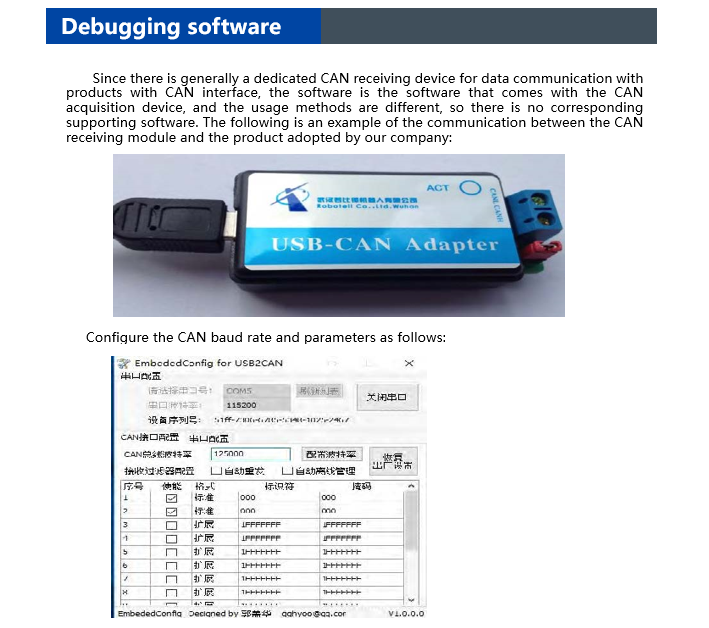

Q5: Fast troubleshooting for CAN products that cannot communicate
1. Firstly, the sensor's power supply voltage is determined
according to the label of the sensor, and the output mode is wired
according to the corresponding interface mode, and the
corresponding protocol is used;
2. Use a multimeter to check the power supply voltage to ensure
that the power supply is normal;
3. Configure the serial port parameters for communication, set the
correct product address (normal protocol factory default 00, Modbus
protocol factory default 01), select the correct baud rate (default
9600), open the computer device manager to confirm that the COM
port number is selected correctly;
