BW-IMU427C Series High-Performance Modbus Inertial Measurement Unit
Cable 1.5m Gyro Resolution 0.01°/Sec
Introduction
BW-IMU427C uses highly reliable MEMS accelerometers and gyroscopes,
at the same time, the sealing design and strict production process
ensure that the product can accurately measure movement parameters
such as the angular velocity, acceleration and attitude of the
carrier in harsh environments.
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec |
| Bias stability at room temperature | ＜1°/h(100s,1σ) ＜10°/h(10s,1σ) |
| Bias stability at full temperature | ＜20°/h (10s, 1σ) |
| Angle random walk coefficient | ＜0.1 °/√h |
| Bias repeatability | ＜50 °/h(1σ) |
| Scale factor non-linearity | ≤100ppm(1σ) |
| Scale factor repeatability | ≤100ppm(1σ) |
| Bandwidth | 100Hz |
| Accelerometer | Range: X, Y, Z | ±3.6g |
| Resolution | 0.01mg |
| Bias stability | 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Application
Construction machinery
Stable platform
Unmanned drive
Unmanned aircrafts
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?

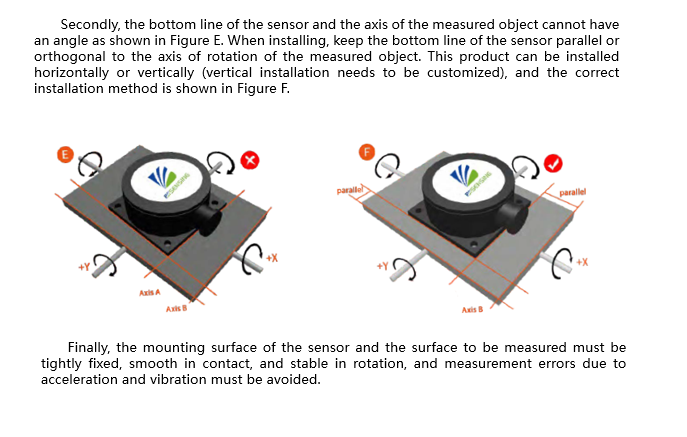

d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
