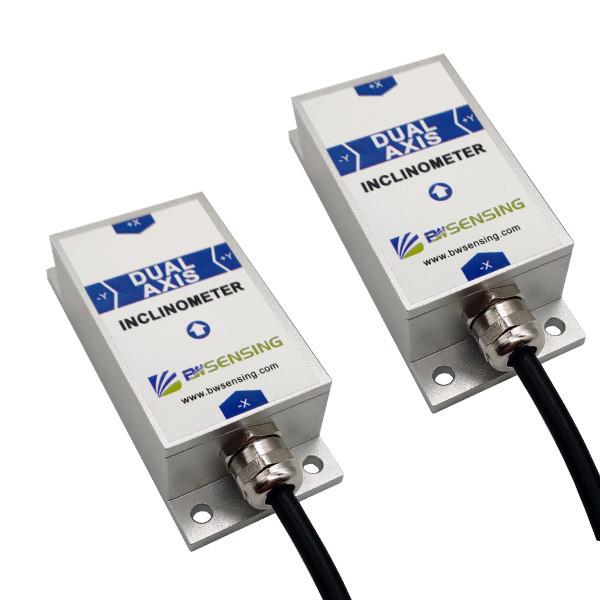

BWM428 High-Stability Current Output Dual Axis Inclinometer
Accuracy 0.01° Surveying And Mapping Instruments
Introduction:
BWM428 adopts double axis inclination measurement and digital
output mode: RS232 / RS485 / TTL optional. It has high stability,
small temperature drift, simple use and strong anti-interference
ability. It is a cost-effective product, which is suitable for
engineering machinery control, tower tilt monitoring and automatic
adjustment industries.
Performance Index:
Measurement Range (°) | Condition | ±90 |
| Measurement axis | Mutually perpendicular | X-Y |
| Accuracy (°) | Room temperature | 0.01 |
| Resolution (°) | Completely still | 0.001 |
| Zero bias (°/℃) | -40~85℃ | ±0.005 |
| Cross axis error(°) | | 0.05 |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
| Zero current output (V) | 10(0-20)；12(4-20)；12(0-24)
|
| Full-scale output current range (V) | 4-20(0-20 optional) (0-24 optional) |
| Mean time between failures MTBF | ≥90000h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 times/axis |
Application:
● Surveying and Mapping Instruments
● Equipment automation
● Lifting equipment inclination control
● Medical instruments
● Photovoltaic automatic tracking
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Can analog quantity change the range?
A: User-defined settings can be made on the Beiwei host computer
with RS232-USB through the reserved RS232 wire harness.
