AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital
Output Inertial Navigation
Introduction:
AS100-5 is a high-precision and small-volume micro-mechanical
accelerometer based on MEMS technology. The product is
independently designed, from the manufacturing process to the
product packaging and testing to achieve localization, the
accelerometer operating temperature range is -40 °C to +85 °C,
storage temperature is -55 °C to +125 °C, using small-volume
ceramics The package has the characteristics of high precision,
wide range, large impact resistance, wide applicable temperature
range, and full digital output. The accelerometer integrates
temperature compensation function and uses SPI bus to read and
write data.
Performance Index:
| Bias stability (typical) | 0.1mg |
| Offset repeatability | 0.15mg |
| Partial temperature coefficient | 0.05mg/℃ |
| Bias stability at full temperature (typical) | 2.2mg |
| Threshold/resolution | 0.02mg |
| Scale factor nonlinearity | 0.3% of FS |
| Scale factor repeatability | 50ppm |
| Scale factor temperature coefficient | 2ppm/℃ |
| Start-up Time | 0.1s |
| Sampling Rate | 1000Samples/s |
| Bandwidth | 100Hz |
| Power consumption | ＜40mW |
| Power supply | 3.3VDC |
| Output | SPI digital output |
| Package | LCC ceramics |
| Operating temperature | -40~+85℃ |
| Storage temperature | -55~+125℃ |
| Random vibration | 6g effective value(20~2KHz) |
| Impact resistance | 10000g |
| Dimension | 10*10*3.5mm |
| Weight | <1g |

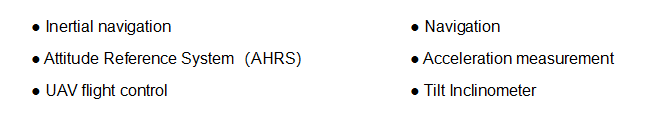

Application:
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
