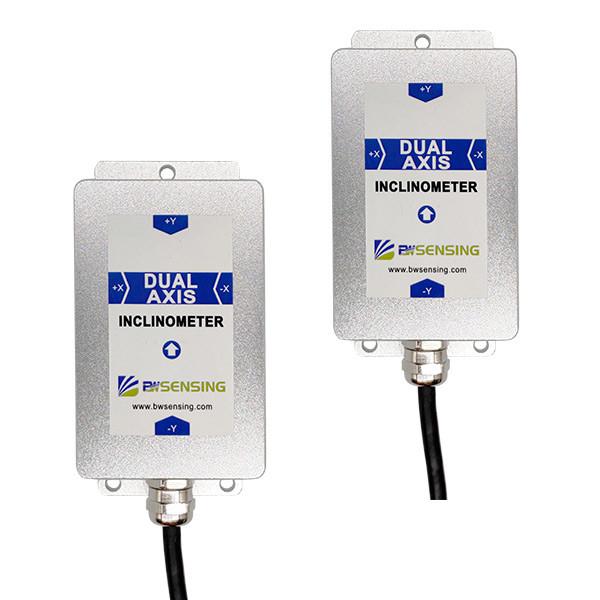

BWS5000E Series High-Stability Digital Output Dual Axis
Inclinometer Temperature drift 0.0003°/℃ Cross axis error 0.001°
Introduction
BWS5000E is a dual-axis high-precision, high-stability inclinometer
with MEMS technology and digital output, with a surge (impact)
immunity of IEC 61000-4-5 level IV launched by Bewis Sensing, with
a measuring range of ± 15°, the highest accuracy is 0.001°, and the
temperature drift is ±0.0003°/℃.
Performance index
| Measurement Range (°) | Condition | ±5 | ±15 ±30 |
| Measurement axis | Mutually perpendicular | X-Y | X-Y |
| Accuracy (°) | Room temperature | 0.001 | 0.003 |
| Resolution (°) | Completely still | 0.0005 | 0.0005 |
| Zero bias (°/℃) | -40~85℃ | ±0.0003 | ±0.0003 |
| Cross axis error (°) | -40~85℃ | 0.001 | 0.001 |
| Start-up time | | ＜3s | ＜3s |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 50 | Up to 50 |
| Baud rate | Adjustable | 2400~115200 | 2400~115200 |
| Mean time between failures MTBF | ≥90000 h/time |
| Electromagnetic compatibility | According to GBT17626 |
| Impact resistance | 2000g,0.5ms,3 times/axis |
Weight (g) | 320 (metal plug)/ 350 (Aviation plug) |
| Electrostatic discharge | IEC 61000-4-2 IV level | Contact discharge 8KV, air discharge 15KV |
| Fast transient pulse burst immunity | IEC 61000-4-4 IV level | Repetition frequency: 5kHz, power positive and negative pole: 4kV,
signal line: 2kV |
| Surge (impact) immunity | IEC 61000-4-5 IV level | Power positive and negative pole, signal line; common mode: 4kV |
Application
Tunnel and dam monitoring
Tower tilt monitoring
Surveying and Mapping Instruments
Wind turbine tower monitoring
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Can analog quantity change the range?
A: User-defined settings can be made on the Bewis host computer
with RS232-USB through the reserved RS232 wire harness.
