BWL327S Low-Cost Modbus Dual Axis Inclinometer Tiltmeter

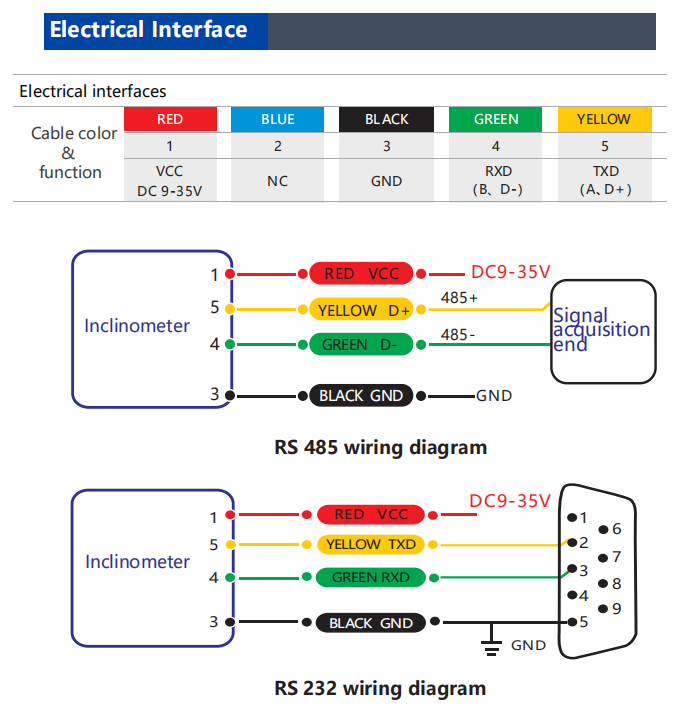

RS232/RS485/TTL Optional
Introduction:
It uses a mature industrial-grade MEMS accelerometer, with a
measuring range of ±180°, the highest accuracy of 0.1°, and an
operating temperature of -40°C to +85 ℃. This product is small in
size and light in weight, which can meet the application
requirements with limited space. It converts the change of the
static gravity field into the change of the inclination angle, and
directly outputs the horizontal inclination angle value through the
voltage mode. It has the advantages of low cost, small temperature
drift, simple use, and strong anti-interference ability.
Application:
● Medical instruments
● Photovoltaic automatic tracking
● Tower tilt monitoring
● Industrial automatic leveling
Performance Index:
Measurement Range (°) | Condition | ±10 | ±30 | ±60 | ±90 |
| Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y | X-Y |
| Accuracy (°) | Room temperature | 0.1 | 0.1 | 0.1 | 0.2 |
| Resolution (°) | Completely still | 0.01 | 0.01 | 0.01 | 0.01 |
| Zero bias (°/℃) | -40~85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Cross axis error (°) | -40~85℃ | 0.1 | 0.1 | 0.1 | 0.2 |
| Start-up time | | ＜50ms | ＜50ms | ＜50ms | ＜50ms |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 | Up to 100 |
| Mean time between failures MTBF | ≥90000 h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 times/axis |
| Weight (g) | 210(without outer packaging) |
BWSENSING's Accuracy Traceability System:
Company introduction:
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast
growing company established in 2010. The company was born in The
Institute of Microelectronics (IME) of Peking University. We have
achieved the top spot in the middle and high-end industry
applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10
years experience in the research-design-development and manufacture
of a range of Inertial sensor technology, BWSENSING posses the
skills, knowledge and experience to provide fully integrated
OEM/ODM design and manufacturing services for Inclinometer,
Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope.
As the company co-founder Dr. Guangyi Shi said, we will use the
Accurate and Cost-effective sensors to make a greater contribution
to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
